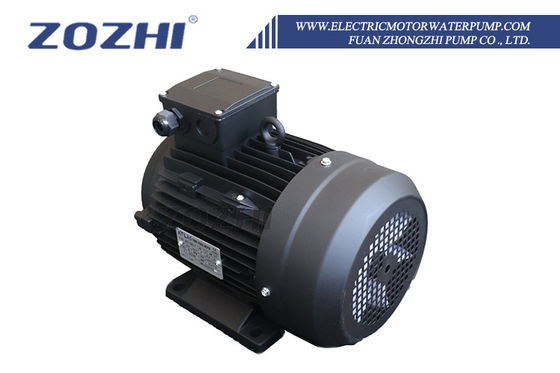

100% Copper Wire 50Hz Frequency Electric Three-Phase Motor Double Bearing Hollow Shaft 1500rpm 380V 400V for Car Washer Machine

  • 100% Copper Wire 50Hz Frequency Electric Three-Phase Motor Double Bearing Hollow Shaft 1500rpm 380V 400V for Car Washer Machine
  • 100% Copper Wire 50Hz Frequency Electric Three-Phase Motor Double Bearing Hollow Shaft 1500rpm 380V 400V for Car Washer Machine
  • 100% Copper Wire 50Hz Frequency Electric Three-Phase Motor Double Bearing Hollow Shaft 1500rpm 380V 400V for Car Washer Machine
Nguồn gốc Trung Quốc
Hàng hiệu ZOZHI
Số mô hình MS112M2-4

Liên hệ với tôi để lấy mẫu và phiếu giảm giá miễn phí.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

Ứng dụng trò chuyện: sales10@aixton.com

Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.

x
Thông tin chi tiết sản phẩm
Tần số định số 50Hz/60Hz Loại lắp đặt IMB3/IMB5
Mức tiếng ồn 75dB Hiệu quả ≥IE2
Điện áp định số 220V/380V/440V/550V/660V Độ cao ≤1000m
Lớp cách nhiệt F/H Loại động cơ Hướng dẫn
Làm nổi bật

Hollow Shaft Electric Three-Phase Motor

,

Double Bearing Electric Three-Phase Motor

,

Car Washer Machine Three-Phase Motor
Để lại lời nhắn
Mô tả sản phẩm

Product Description:

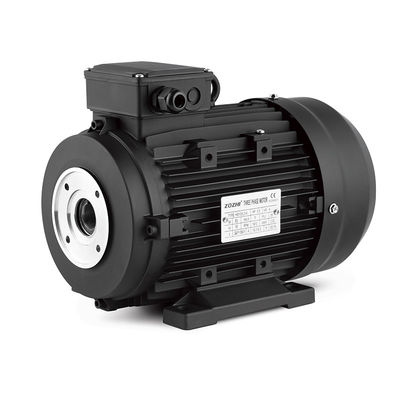

The Hollow Shaft Motor is an ideal choice for high-pressure pumps, pressure washing machines and other industrial applications. Featuring a lightweight aluminum alloy housing, this three-phase asynchronous motor offers reliable performance with a rated power of 0.55KW and a rated torque of 2.2N.m. Its FAN cooling method ensures maximum safety and efficiency, and its weight of only 2.5kg makes it easy to install and transport.


The hollow shaft electric motors are designed to allow direct connection with plunger pumps.

ZOZHI hollow shaft motors are designed with a single-bearing configuration and high-precision machining.
Tight tolerances and excellent concentricity ensure a perfect and natural coupling between motor and pump.

Main advantages:

  • Automatic alignment

  • Reduced bearing wear

  • Long-term reliability

The hollow shaft enables efficient torque transmission, eliminating mechanical constraints and preventing micro-misalignments







Application



The direct coupling between the motor and high-pressure pump, ideal for pressure cleaners and washing plants, significantly reduces the machine's overall size and provides a reliable and cost-efficient solution. We have a wide range of flanges and shafts suitable for direct coupling with most of the pumps on the market today.

100% Copper Wire 50Hz Frequency Electric Three-Phase Motor Double Bearing Hollow Shaft 1500rpm 380V 400V for Car Washer Machine 0












Advantage





Popular motor to support you to win the market





High-Efficiency Motor High-standard material with 100% output



Population Motor Get good feedback from customer



OEM & ODM Customized service



Direct manufacturer 24 hours online service



3 Years Warranty Almost without any after service



7 days shipment Stock Material





Relate Products





100% Copper Wire 50Hz Frequency Electric Three-Phase Motor Double Bearing Hollow Shaft 1500rpm 380V 400V for Car Washer Machine 1 100% Copper Wire 50Hz Frequency Electric Three-Phase Motor Double Bearing Hollow Shaft 1500rpm 380V 400V for Car Washer Machine 2 100% Copper Wire 50Hz Frequency Electric Three-Phase Motor Double Bearing Hollow Shaft 1500rpm 380V 400V for Car Washer Machine 3

Hollow Shaft Motor

Three Phase Motor

Hollow Shaft Motor

Single Phase Motor

Solid Shaft Motor

3 Phase Motor
100% Copper Wire 50Hz Frequency Electric Three-Phase Motor Double Bearing Hollow Shaft 1500rpm 380V 400V for Car Washer Machine 4 100% Copper Wire 50Hz Frequency Electric Three-Phase Motor Double Bearing Hollow Shaft 1500rpm 380V 400V for Car Washer Machine 5 100% Copper Wire 50Hz Frequency Electric Three-Phase Motor Double Bearing Hollow Shaft 1500rpm 380V 400V for Car Washer Machine 6

Solid Shaft Motor

Mono phase Motor

Solid Shaft Motor

AC induction single-phase motor

Electric Centrifugal Switch

For Single Phase Motor





Factory Picture



100% Copper Wire 50Hz Frequency Electric Three-Phase Motor Double Bearing Hollow Shaft 1500rpm 380V 400V for Car Washer Machine 7





Customer Feedback

100% Copper Wire 50Hz Frequency Electric Three-Phase Motor Double Bearing Hollow Shaft 1500rpm 380V 400V for Car Washer Machine 8





Technical Data





Three-Phase Hollow Shaft Motor 400V 50Hz (IE1/IE2/IE3)





FRAME POWER RPM COSφ EFF.% VOLT AMPERE
K.W. HP P.F. V A
HS90L1-2 2.2 3 2820 0.86 78 400 4.9
HS90L2-2 3 4 2820 0.86 78 400 6.6
HS90L3-2 3.7 5 2820 0.80 83 400 8.6
HS100L1-2 3 4 2840 0.83 81 400 7
HS100L2-2 4 5.5 2850 0.86 82 400 8.5
HS100M1-2 4 5.5 2830 0.84 82 400 9.4
HS112M2-2 5.5 7.5 2840 0.85 83 400 11.7
HS132S1-2 5.5 7.5 2890 0.86 84 400 11.6
HS132S2-2 7.5 10 2900 0.86 84 400 15.4
HS132M1-2 11 15 2920 0.88 86 400 21.8
HS132M2-2 15 20 2920 0.88 86 400 29.3
HS160M1-2 15 20 2920 0.87 88 400 28
HS160M2-2 18.5 25 2920 0.87 89 400 34
HS160M3-2 22 30 2920 0.87 89.2 400 41
HS90L1-4 1.5 2 1400 0.82 78 400 3.4
HS90L2-4 2.2 3 1400 0.79 77 400 5.4
HS90L3-4 2.6 3.5 1400 0.80 78 400 7.4
HS100L1-4 2.2 3 1400 0.80 81 400 5.1
HS100L2-4 3 4 1410 0.80 81 400 6.9
HS100L3-4 4 5.5 1420 0.80 82 400 9.4
HS100M1-4 4.4 6 1420 0.82 83 400 10
HS112M1-4 4 5.5 1420 0.80 83 400 9
HS112M2-4 5.5 7.5 1430 0.82 84 400 12.1
HS112M3-4 6.2 8.5 1425 0.82 84 400 13.5
HS112L-4 7 9.5 1430 0.80 85 400 13.8
HS132S1-4 5.5 7.5 1430 0.82 84 400 11.7
HS132S2-4 7.5 10 1430 0.84 84 400 15.4
HS132M1-4 9.2 12.5 1430 0.90 85 400 17.8
HS132M2-4 11 15 1430 0.90 87 400 21.3
HS132M3-4 12.5 17 1430 0.88 84 400 26
HS160M1-4 15 20 1450 0.86 89 400 29
HS160M2-4 18.5 25 1450 0.86 90 400 34
HS90L-6 1.1 1.5 910 0.72 72 400 3.2
HS100L-6 1.5 2 910 0.80 74 400 3.9
HS112M1-6 2.2 3 940 0.80 80 400 5
HS112M2-6 3 4 940 0.80 79 400 6.9
HS132S1-6 3 4 940 0.78 80 400 6.9
HS132S2-6 4 5.5 950 0.79 82 400 9
HS132M1-6 5.5 7.5 950 0.79 83 400 12.4
HS132M2-6 7.5 10 950 0.79 83 400 16.5
HS160M1-6 7.5 10 960 0.77 87 400 16.5
HS160M2-6 11 15 960 0.79 88 400 23









Installation Dimension

100% Copper Wire 50Hz Frequency Electric Three-Phase Motor Double Bearing Hollow Shaft 1500rpm 380V 400V for Car Washer Machine 9



FRAME FLANGE FRAME
M N S A AC B H HC L K
90L 75/87 90/61 7/9 140 175 125 90 220 270 9.5
100L 75/87 90/61 7/9 160 196 140 100 240 315 11
112M 75/87 90/61 7/9 190 220 140 132 275 330 11
132S 87 61 9 216 254 140 132 320 370 12
132M 87 61 9 216 254 178 132 320 409 12
160M 87 61 9 254 310 210 160 410 498 14.5


3 Years Warranty



Guarantee for 3 years from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.


Certificate

100% Copper Wire 50Hz Frequency Electric Three-Phase Motor Double Bearing Hollow Shaft 1500rpm 380V 400V for Car Washer Machine 10





RFQ




1. Q: What’s the MOQ? 2. Q: Are you a factory or trading company?

A: A trial sample order is ok. A: Manufacturer. Focus on motors for more than 15 years.


3. Q: Can you accept using our logo? 4. Q: How can I get the sample?

A: Yes, we can do OEM for you. A: Usually, we suggest express for samples.



5. Q: What’s the warranty period? 6. Q: What are your terms of payment?

A: 3 years from shipped on board date. A: 30% advance payment, balance before shipment.
  • .
